High Pressure CNG Hose Pipe 5000psi for Dispensers in Transfer Vehicles

Plaats van herkomst:

China

Merknaam:

PASSION

Certificering:

Modelnummer:

CNG

Neem contact met ons op

Verzoek om een Citaat

Productdetails

Innerlijke buis:

Leidende thermoplastische materialen

Versterking:

Geflederde vezels

Buitenste buis:

Polyurethaan (PU)

Id:

1/4", 5/16", 3/8", 1/2", 3/4", 1"

Min krommingsstraal:

51 mm - 254 mm

Lengte:

0,2 meter, 0,3 meter, 2,8 meter of als uw verzoek

buitendiameter:

14 mm, 16.5 mm, 22.9 mm, 30.2 mm, 40.4 mm

Pakket:

Verpakt in dozen

Sollicitatie:

CNG-dispenser

MOQ:

1000 meter

Doorlooptijd:

normaal 30 dagen

Fabrikant:

Paishun

Merk:

Passioncoslang

Werkdruk:

5000 psi

Burst -druk:

14000 psi

Betaling & het Verschepen Termijnen

Min. bestelaantal

1000 meter

Verpakking Details

Goed verpakt door dozen van hoge kwaliteit of gevlochten riemen

Levertijd

30 dagen

Betalingscondities

T/T

Levering vermogen

10000 stks/maand

VERWANTE PRODUCTEN

Video

Lichte gecomprimeerde aardgasslang 5000 PSI voor tankstations

Krijg Beste Prijs

CNG-slang met draadversterking voor hogedruknatuur gaslevering

Krijg Beste Prijs

Video

Hoogdrukdraadbreiversterkingslaag CNG-slang voor de distributie van gecomprimeerd aardgas

Krijg Beste Prijs

Hoogdrukdraadbreiversterkingslaag CNG-slang voor de distributie van gecomprimeerd aardgas

Krijg Beste Prijs

Neem contact met ons op

Contact nu

Productomschrijving

Electrically Conductive Compressed Gas CNG Transfer Hose 350 Bar

CNG hose incoporated with steel wire is a general hose, what about the hose embedded with aramid fibers?

Comparing with the general type, the CNG hose with aramid fibers is more flexible, more easy to handle, high pressure is guaranteed.

Without steel wire, the hose can still keep anti-static, because we use a " conductive " material to produce the inner tube. It is safe when being used in gas stations.

High pressure hose suitable for CNG refueling applications featuring conductive inner tube to dissipate static electric build up.
Extra tough cover for abrasion water and micro biological resistance.
Non metallic lightweight design for easy handling and manipulation.
Rugged construction to give kink - crush - twist and pull resistance.

In addition to taking the lead in development and mass production of polyure-thane reinforced
hose series (widely used in power steering systems of various buses and vehicles). Our company
studied and developed CNG special hose series relying on our own technical force in 2006. It is
being widely used in the connection pipeline system of loading and unloading between CNG
cylinder cars and pressure reduction station or parent stations.

The product is easy to install and convenient to use. Special CNG hose assembly includes
different coupling means: ball valve, quick coupling and flange, so it is convenient to adjust the
distance of loading and unloading.

The product has strong pressure adaptability. Range of application: 1.0MPa-35Mpa, can meet the
needs of different customers.

Specifications	I.D. (inch)	O.D. (mm)	Service Pressure (psi)	Min Bend Radius (mm)
CNGG-6	1/4"	14.0	5000	51
CNGG-10	3/8"	16.5	5000	76
CNGG-13	1/2"	12.5	5000	102
CNGG-19	3/4"	19	5000	191
CNGG-25	1"	25	5000	254

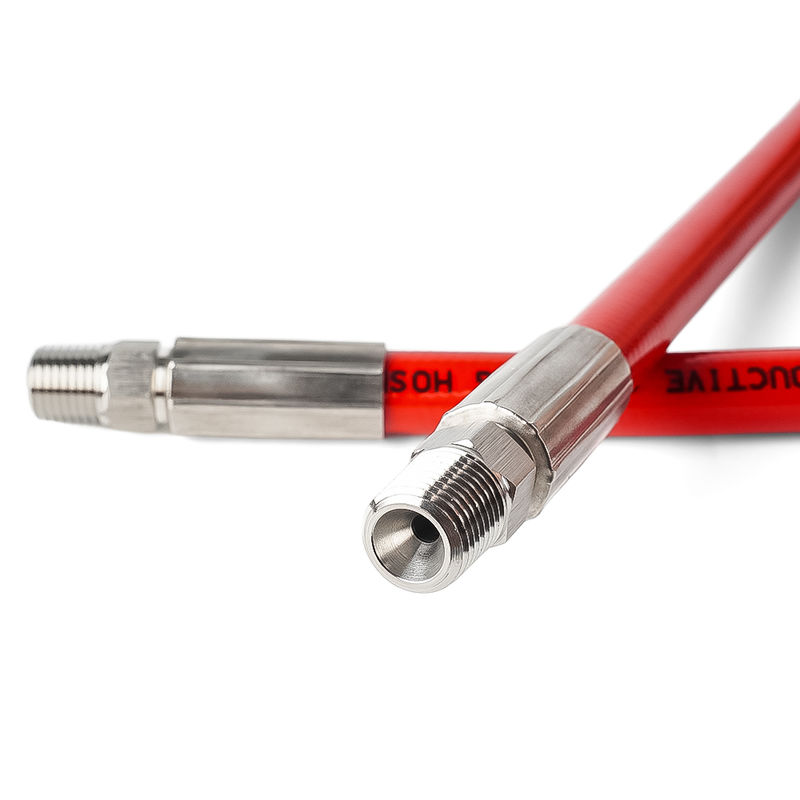

High Pressure CNG Hose Pipe 5000psi for Dispensers in Transfer Vehicles 0

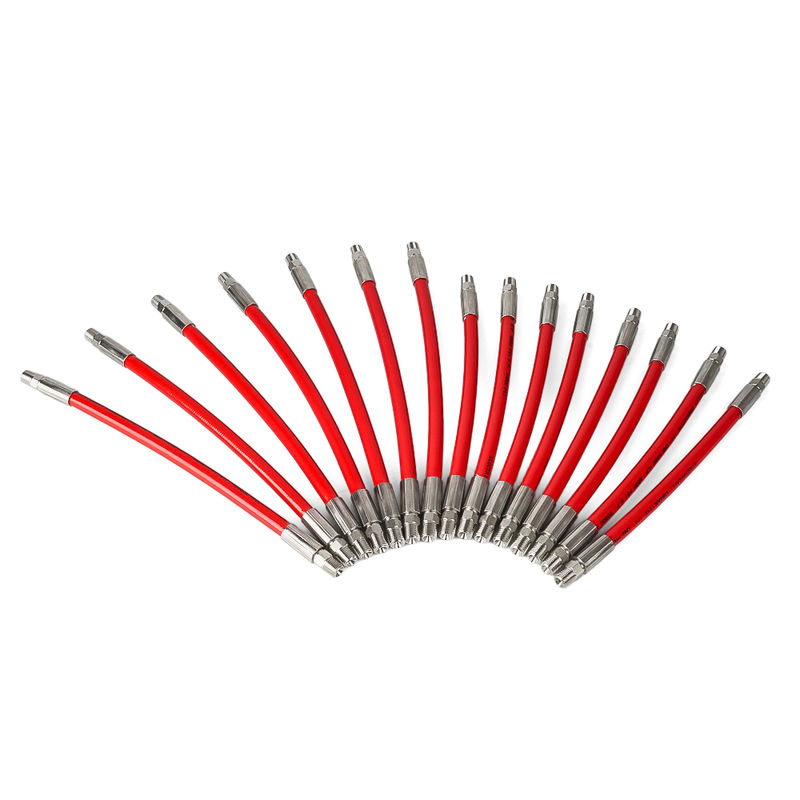

High Pressure CNG Hose Pipe 5000psi for Dispensers in Transfer Vehicles 1

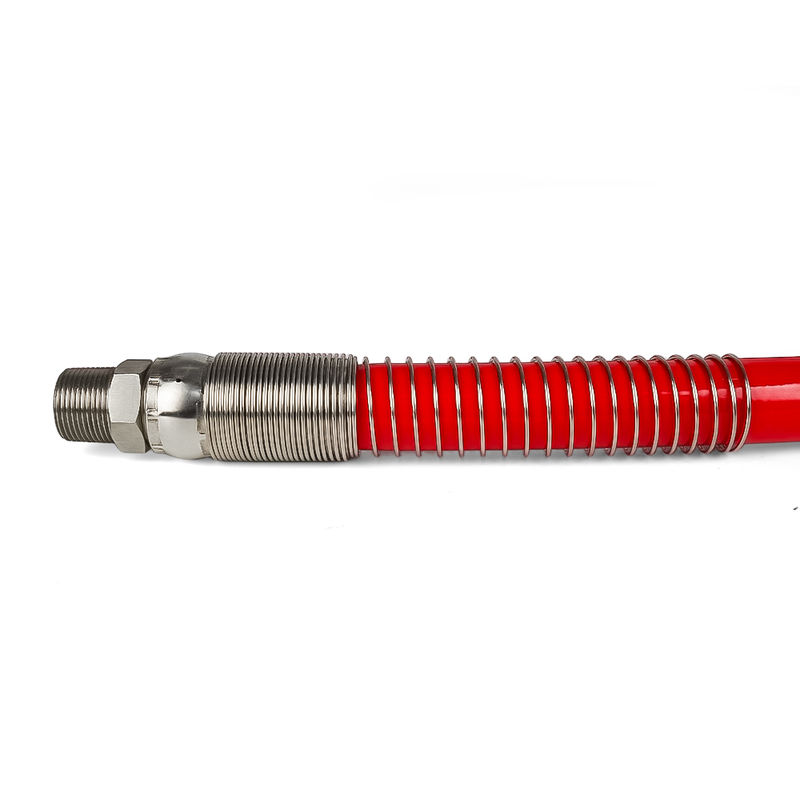

High Pressure CNG Hose Pipe 5000psi for Dispensers in Transfer Vehicles 2

Application:

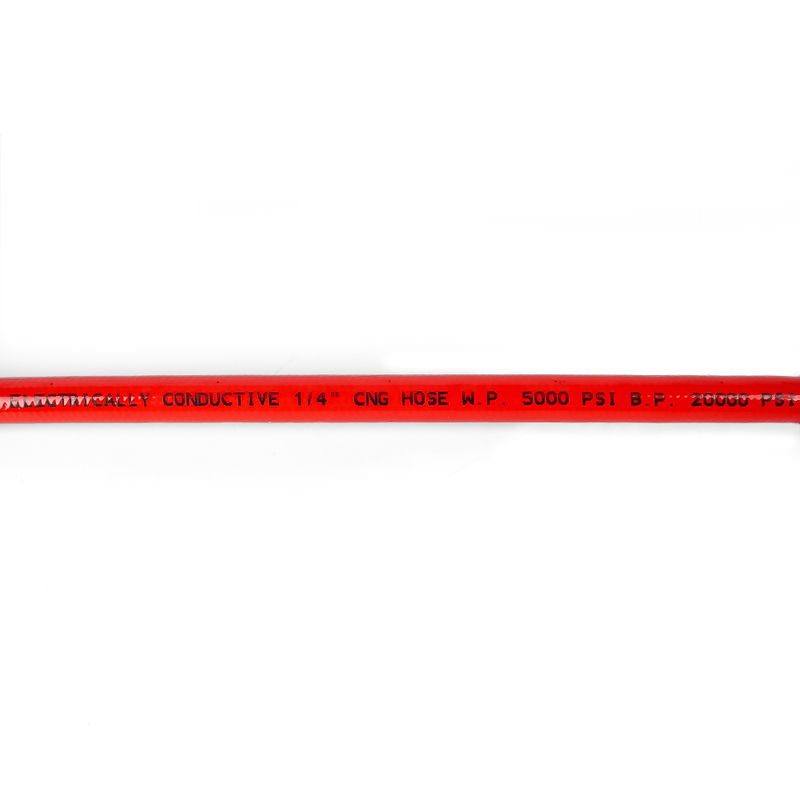

Markeringen：

High Pressure CNG Hose Pipe 5000psi for Dispensers in Transfer Vehicles
