Name: High Pressure PTFE Steam Transfer Hose for Commercial Ironing Systems
Brand: Hangzhou Paishun Rubber & Plastic Co., Ltd
SKU: SAE 100R14
Price: 15.29 USD
Availability: InStock

Huis > producten > PTFE Gevlechte Slang >

High Pressure PTFE Steam Transfer Hose for Commercial Ironing Systems

Plaats van herkomst:

China

Merknaam:

PASSIONCOHOSE

Certificering:

ISO 9001-2015, CE, RoSH, REACH, FDA

Modelnummer:

SAE 100R14

Neem contact met ons op

Verzoek om een Citaat

High Pressure PTFE Steam Transfer Hose for Commercial Ironing Systems

Productdetails

Modelnummer:

PTFE-slang, SAE 100R14

PTFE-slangenmarkt:

Noord-Amerika, Europa, Zuid-Amerika

Materiaal:

PTFE

Id:

1/8" ~ 1"

Innerlijke buis:

Extrudeerd glad PTFE

Omslag:

SS 304 enkeldraad vlecht

Temperatuur:

-60℃ ~ +260℃

W.P.:

179.5bar-48.8bar

Bloeddruk:

718 bar-195 bar

Aanpassingsopties:

Kleur, lengte, uiteindelijke toebehoren, vlechtmateriaal, enz.

Verpakking:

geweven strippen, pallet, karton

Uitrusting:

OEM

Betaling & het Verschepen Termijnen

Min. bestelaantal

200m

Prijs

Onderhandelbaar

Verpakking Details

Geweven strips, pallet, karton, etc. We kunnen ook pakket maken volgens uw vereisten.

Levertijd

Binnen 25 dagen nadat we de voorschotbetaling hebben ontvangen

Betalingscondities

L/C ,, T/T, Western Union, MoneyGram

Levering vermogen

300000m/maand

VERWANTE PRODUCTEN

Flexible PTFE Steam Hose for Large Industrial Iron Equipment

Krijg Beste Prijs

Video

Chemisch bestand PTFE-slangenassemblage voor laboratoriumvloeistofoverdrachtsystemen

Krijg Beste Prijs

Video

PTFE slangassemblage met hoge temperatuurbestendigheid en chemische bestendige eigenschappen voor antistatische toepassingen

Krijg Beste Prijs

Antistatische PTFE brandstofslang voor brandstofcelsystemen in de auto-industrie

Krijg Beste Prijs

Neem contact met ons op

Contact nu

Productomschrijving

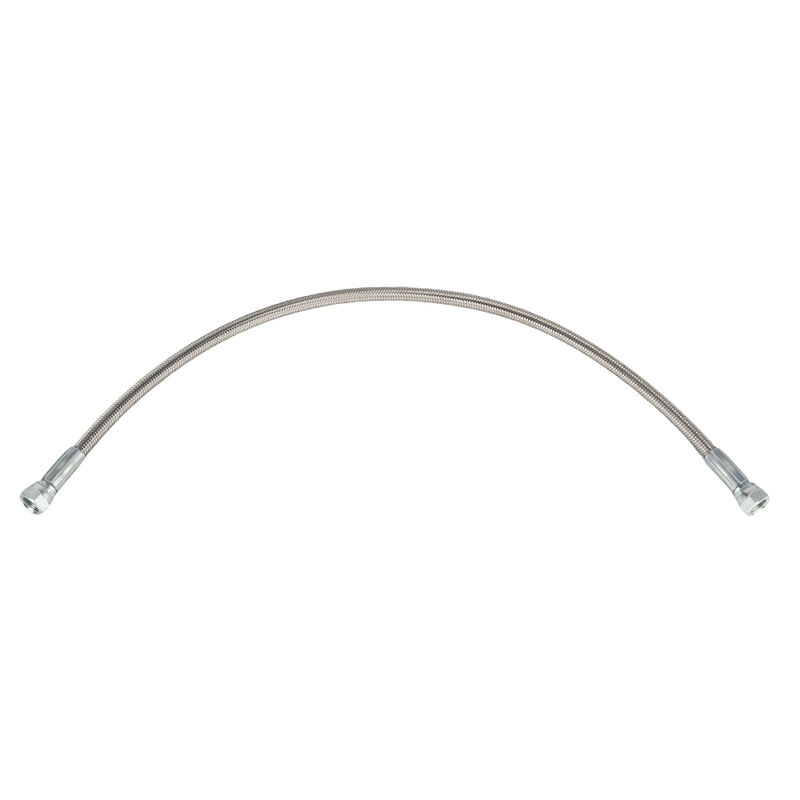

High Pressure PTFE Steam Transfer Hose for Commercial Ironing Systems

Description:

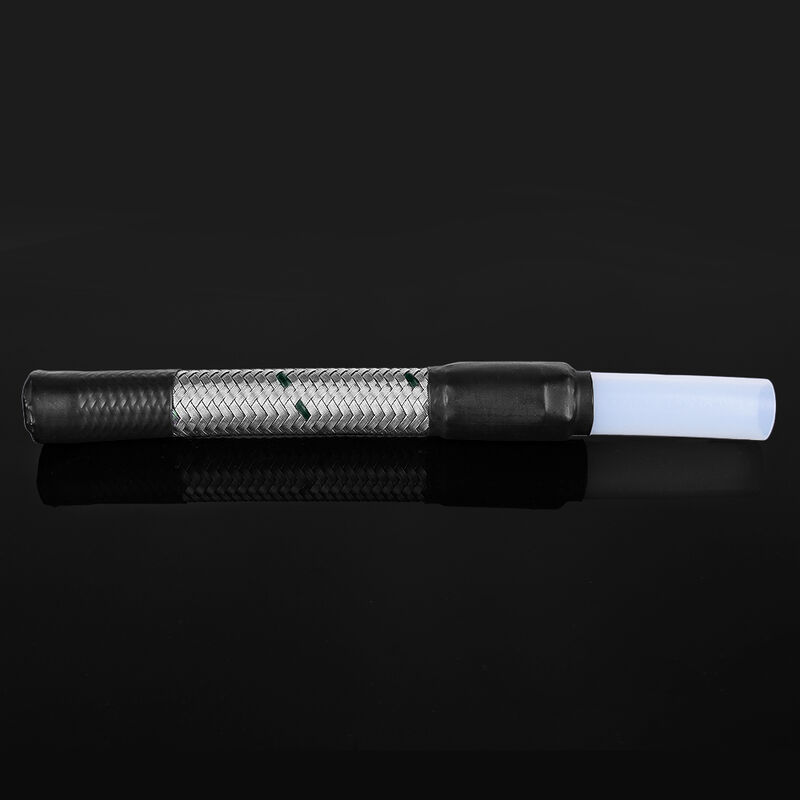

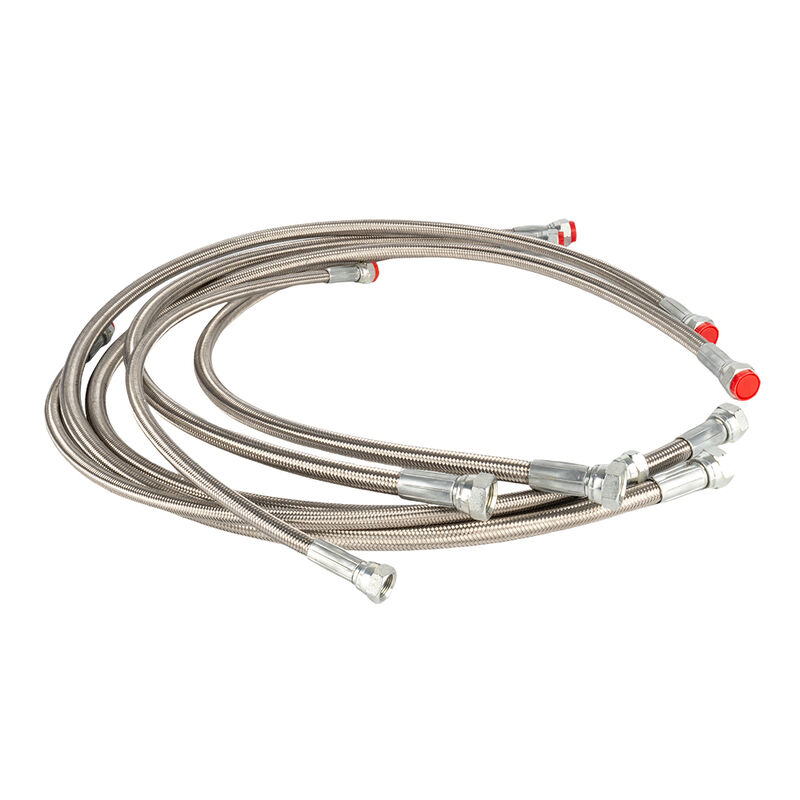

Smooth Bore Stainless Steel Braided PTFE Hoses

Inner tube: Smooth bore PTFE
Out Cover: Stainless Steel 304 or 316 Wire Braided
Temperature Range: -65℃ ~ +260℃
Standard: SAE 100R14
Feature: Excellent chemical resistance, high and low temperature resistance, excellent corrosion resistance, non-stick surface, flexibility, high purity, electrical insulation.

All braided PTFE hoses can increase Anti-Static performance with carbon treatment.

Part-number	Inner Diameter	I.D. (mm)	O.D. (mm)	Bending Radius (mm)	Min.W.P (bar)	Min. B.P. (bar)
PR14-02	1/8"	3.2	6.7	16	250	1000
PR14-03	3/16"	5.0	7.6	20	205	820
PR14-04	1/4"	6.5	9.4	27	188	752
PR14-05	5/16''	8.0	11.1	27	162	648
PR14-06	3/8''	10.0	13.2	33	130	520
PR14-08	1/2''	13.0	16.2	66	112	448
PR14-10	5/8"	16.3	19.4	150	80	320
PR14-12	3/4''	19.0	23.0	226	70	280
PR14-14	7/8"	22.5	26.2	245	60	240
PR14-16	1''	25.4	29.8	300	50	200

Excellent High Temperature Resistance
Made of premium PTFE material, suitable for continuous steam transfer under high temperature working conditions.
High Pressure Performance
Designed to handle high-pressure steam used in large industrial ironing and laundry equipment.
Flexible & Lightweight
Highly flexible PTFE hose allows easy installation and movement, even in compact or complex ironing systems.
Smooth Inner Surface
Non-stick inner bore ensures smooth steam flow, reduces pressure loss and prevents scaling.
Long Service Life
PTFE material provides outstanding aging resistance, ensuring stable performance and long-term use.
Optional Stainless Steel Braiding
Available with stainless steel braided reinforcement for enhanced pressure resistance and safety.

Application:

Industrial steam ironing machines
Large commercial steam irons
Industrial laundry and garment finishing equipment
Central steam supply systems for ironing lines
High temperature steam conveying systems in factories
